When a contract or report needs a supporting image or a logo, a fully opaque image covers the body text, so it gets pushed into a corner. If an image has already been placed and needs to be faded, the usual fix is to go back to the source file and redo the layout, and without that file you are stuck with what is on the page. Both tasks are manual in desktop software and hard to fit into a batch Web workflow; handled on a server, the file has to leave the user's device first.

This article uses Spire.PDF for JavaScript to do the work in the browser. A new image is drawn at a given alpha with PdfCanvas.SetTransparency(); images already on the page are located with PdfImageHelper, deleted, and redrawn semi-transparent inside their original bounds. The library runs on WebAssembly and reads and writes PDF files through a virtual file system (VFS), so no backend is required.

This article covers two core features:

• Add an image with transparency to a PDF document
• Adjust the transparency of existing images on a PDF page

For installation and project setup, see How to Integrate Spire.PDF for JavaScript in a React Project. The examples below assume Spire.PDF is installed and the WebAssembly module has been initialized.

Add an Image with Transparency to a PDF Document

Spire.PDF for JavaScript provides the PdfCanvas.SetTransparency() method to set transparency on the canvas. When only alpha is passed, fill and stroke share that value. It ranges from 0 to 1: 0 is fully transparent and 1 is fully opaque. The setting applies to all drawing that follows the call, so wrap it in Save() and Restore() to keep other page content from fading as well.

Follow these steps:

1. Get the Spire.PDF WebAssembly module and confirm it is ready.
2. Load the PDF file and the image into the VFS.
3. Create a PdfDocument object, load the PDF, take the first page, and load the image with PdfImage.FromFile().
4. Save the canvas state with PdfCanvas.Save(), call SetTransparency(), and draw the image with DrawImage().
5. Restore the canvas state with Restore(), save the result with SaveToFile(), and trigger the download.

The code for adding a semi-transparent image:

function App() {
  const addTransparentImage = async () => {
    // Get the Spire.PDF WebAssembly module
    const pdfModule = window.wasmModule?.spirepdf;

    // Check that the module is ready
    if (!pdfModule) {
      alert('Spire.PDF is not ready yet');
      return;
    }

    // Load the PDF and the image into the VFS
    const inputFileName = 'Business_Data_Overview.pdf';
    const imageFileName = 'scenery.jpg';
    await window.spire.FetchFileToVFS(inputFileName, "", `${process.env.PUBLIC_URL}/data/`);
    await window.spire.FetchFileToVFS(imageFileName, "", `${process.env.PUBLIC_URL}/data/`);

    // Create a PdfDocument object and load the PDF
    let doc = new pdfModule.PdfDocument();
    doc.LoadFromFile(inputFileName);

    // Take the first page and load the image to draw
    let page = doc.Pages.get_Item(0);
    let image = pdfModule.PdfImage.FromFile(imageFileName);

    // Save the canvas state so the transparency applies only to this block
    const state = page.Canvas.Save();

    // An alpha of 0.35 makes the image semi-transparent while the content below stays visible
    page.Canvas.SetTransparency({ alpha: 0.35 });
    page.Canvas.DrawImage({ image: image, x: 145, y: 400, width: 300, height: 173 });

    // Restore the canvas state so later drawing is not affected
    page.Canvas.Restore({ state: state });

    // Save the result file
    const outputFileName = 'TransparentImage.pdf';
    doc.SaveToFile(outputFileName);
    doc.Close();

    // Read the generated file from the VFS and trigger the download
    const fileArray = window.dotnetRuntime.Module.FS.readFile(outputFileName);
    const blob = new Blob([fileArray], { type: 'application/pdf' });
    const url = URL.createObjectURL(blob);
    const a = document.createElement('a');
    a.href = url;
    a.download = outputFileName;
    a.click();
    URL.revokeObjectURL(url);
  };

  return (
    <div style={{ textAlign: 'center', height: '300px' }}>
      <h1>Add a Semi-Transparent Image</h1>
      <button onClick={addTransparentImage}>
        Add Image
      </button>
    </div>
  );
}

export default App;

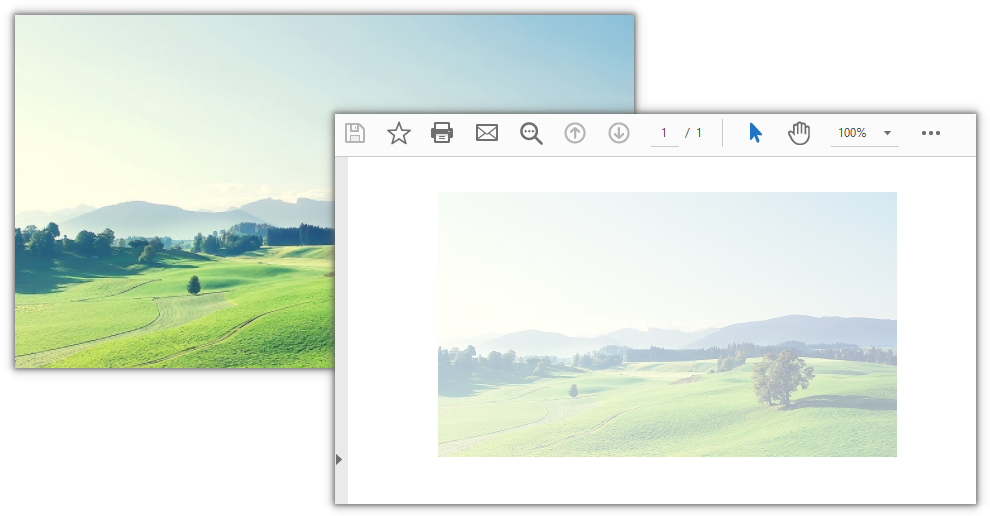

With the image drawn at 35% opacity, the content underneath still shows through:

Adjust the Transparency of Existing Images on a PDF Page

Spire.PDF for JavaScript also provides the PdfImageHelper class to read, delete, and replace images on a page. GetImagesInfo() returns the bounds and image stream of each image. Recreate a PdfImage from each stream, delete the original with DeleteImage(), and redraw it at the specified transparency inside its Bounds.

Follow these steps:

1. Get the Spire.PDF WebAssembly module and confirm it is ready.
2. Load the PDF file into the VFS.
3. Create a PdfDocument object, load the PDF, get the page, and read all images on it with PdfImageHelper.GetImagesInfo().
4. Recreate each image from PdfImageInfo.Image with PdfImage.FromStream() and record its Bounds.
5. Delete all original images with DeleteImage(), redraw them at the specified transparency inside their original bounds, then save with SaveToFile() and trigger the download.

The code for adjusting the transparency of existing images:

function App() {
  const adjustImageTransparency = async () => {
    // Get the Spire.PDF WebAssembly module
    const pdfModule = window.wasmModule?.spirepdf;

    // Check that the module is ready
    if (!pdfModule) {
      alert('Spire.PDF is not ready yet');
      return;
    }

    // Load the PDF into the VFS
    const inputFileName = 'Business_Data_Overview.pdf';
    await window.spire.FetchFileToVFS(inputFileName, "", `${process.env.PUBLIC_URL}/data/`);

    // Create a PdfDocument object and load the PDF
    let doc = new pdfModule.PdfDocument();
    doc.LoadFromFile(inputFileName);

    // Take the first page and read the image information on it
    let page = doc.Pages.get_Item(0);
    let helper = new pdfModule.PdfImageHelper();
    let images = helper.GetImagesInfo(page);

    // Collect each image stream and bounds first, for redrawing after deletion
    let items = [];
    for (let i = 0; i < images.length; i++) {
      items.push({
        info: images[i],
        image: pdfModule.PdfImage.FromStream(images[i].Image),
        bounds: images[i].Bounds
      });
    }

    // Delete all original images first, then redraw them together; redrawing right after each delete gets overwritten by the next delete
    for (let i = 0; i < items.length; i++) {
      helper.DeleteImage({ imageInfo: items[i].info });
    }

    // Redraw each image at 40% opacity inside its original bounds
    for (let i = 0; i < items.length; i++) {
      const { image, bounds } = items[i];
      const state = page.Canvas.Save();
      page.Canvas.SetTransparency({ alpha: 0.4 });
      page.Canvas.DrawImage({
        image: image,
        x: bounds.X,
        y: bounds.Y,
        width: bounds.Width,
        height: bounds.Height
      });
      page.Canvas.Restore({ state: state });
    }

    // Save the result file
    const outputFileName = 'ExistingImageTransparency.pdf';
    doc.SaveToFile(outputFileName);
    doc.Close();

    // Read the generated file from the VFS and trigger the download
    const fileArray = window.dotnetRuntime.Module.FS.readFile(outputFileName);
    const blob = new Blob([fileArray], { type: 'application/pdf' });
    const url = URL.createObjectURL(blob);
    const a = document.createElement('a');
    a.href = url;
    a.download = outputFileName;
    a.click();
    URL.revokeObjectURL(url);
  };

  return (
    <div style={{ textAlign: 'center', height: '300px' }}>
      <h1>Adjust Existing Image Transparency</h1>
      <button onClick={adjustImageTransparency}>
        Adjust Transparency
      </button>
    </div>
  );
}

export default App;

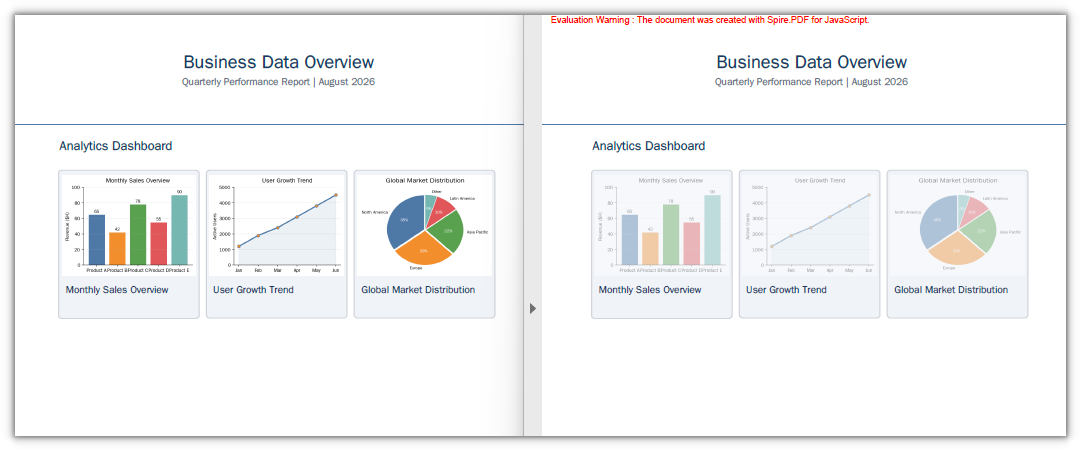

The three images on the page are redrawn at their original positions with 40% opacity, while the body text is unaffected:

FAQ

Why does content drawn after the image also become semi-transparent?

Cause: Transparency is part of the canvas state. Every drawing call after SetTransparency() keeps using that value until the state is restored or set again.

Solution: Wrap the setting in Save() and Restore() so the transparency applies only to the drawing in between:

const state = page.Canvas.Save();
page.Canvas.SetTransparency({ alpha: 0.35 });
page.Canvas.DrawImage({ image: image, x: 145, y: 400, width: 300, height: 173 });
page.Canvas.Restore({ state: state });

When adjusting existing images, why does only the last image become transparent?

Cause: DeleteImage() rewrites the page content stream. If you redraw right after each delete, the next delete overwrites the previous drawing, and often only the last image remains.

Solution: Split the work into three passes: read every image stream and bounds, delete all original images, then redraw them all.

// Delete all original images first
for (let i = 0; i < items.length; i++) {
  helper.DeleteImage({ imageInfo: items[i].info });
}

// Then redraw all of them
for (let i = 0; i < items.length; i++) {
  const { image, bounds } = items[i];
  const state = page.Canvas.Save();
  page.Canvas.SetTransparency({ alpha: 0.4 });
  page.Canvas.DrawImage({
    image: image,
    x: bounds.X,
    y: bounds.Y,
    width: bounds.Width,
    height: bounds.Height
  });
  page.Canvas.Restore({ state: state });
}

How do I adjust only one image on the page?

Cause: GetImagesInfo() returns all images on the page in order, each as a PdfImageInfo whose bounds are available from Bounds.

Solution: Skip the loop and process only the item you need. The following adjusts just the first image:

let images = helper.GetImagesInfo(page);
let info = images[0];
let image = pdfModule.PdfImage.FromStream(info.Image);
let bounds = info.Bounds;

helper.DeleteImage({ imageInfo: info });

const state = page.Canvas.Save();
page.Canvas.SetTransparency({ alpha: 0.4 });
page.Canvas.DrawImage({ image: image, x: bounds.X, y: bounds.Y, width: bounds.Width, height: bounds.Height });
page.Canvas.Restore({ state: state });

What do alpha values of 0 and 1 do?

Cause: alpha represents opacity and takes a linear value from 0 to 1.

Solution: At 0 the image is fully transparent and invisible on the page; at 1 it is fully opaque and looks exactly like a direct draw. For a faded effect, 0.2 to 0.5 is the usual range.
