Lesson preparation usually means doing the same work twice. A textbook lays out concepts, worked examples and exercises chapter by chapter, complete and detailed; a deck has to be reorganised into pages fit for the classroom. Teachers condense the material into a handful of points per slide, add the examples and diagrams, split the exercises into one question per page, and prepare answers for review. None of this is technically hard, but it is time-consuming, and every textbook revision means doing it all again.

The Presentation AI in Spire.Agent.Office hands this step to an AI agent: pass the PDF textbook in as an attachment, describe in natural language how the deck should be organised and presented, and the agent reads the material and generates the slides. It produces either a lecture deck (one page per section, with concepts, examples and speaker notes) or an exercise deck (one question per page, with answers revealed as animations on the page).

Comparison with Traditional SDK API

This article shows how to use Spire.Agent.Office to generate PowerPoint decks from a PDF textbook. Two cases demonstrate the two typical uses — "generating a lecture deck from a textbook" and "generating an exercise deck from a textbook":

• Case 1: Generate a lecture deck from a textbook
• Case 2: Generate an exercise deck from a textbook

For product installation and SpireToken configuration, please refer to Integrating Spire.Agent.Office in a .NET Project. The examples below assume that Spire.Agent.Office has been installed and SpireToken has been configured.

Case 1: Generate a lecture deck from a textbook

A textbook is complete and logically coherent, but it cannot be projected as it is — a whole paragraph becomes a wall of small text on screen, and the hierarchy that the textbook conveys through layout has to be rebuilt with pages. What a teacher needs to do is reorganise it section by section: keep that section's core concepts, formulas and typical worked examples, rewrite long passages into points that read well in class, and carry over the textbook's diagrams. Each page must hold enough to support a full lesson without copying whole paragraphs, or it becomes too dense to read. The deck as a whole then uses one consistent layout: a light colour theme, page-by-page animations and a few supporting images, with body text no smaller than 24 pt.

How the examples are presented matters most. A textbook usually derives a formula or theorem before stating the conclusion; if the deck only carries the conclusion across, students cannot see where it comes from, so the instruction requires examples to keep their full derivation. What the teacher needs to be reminded of while teaching — the emphasis on that page, the common mistakes and the pacing — goes into the speaker notes, invisible when projected and shown only in Presenter View. The example below passes the PDF textbook in as an attachment:

using Spire.Agent.Office.AI;
using Spire.Agent.Office.Extensions;
using Spire.Presentation;

// the textbook file passed in as an attachment
string[] attachmentPaths = new string[]
{
    @"E:\textbook\Proportion.pdf"
};

// PPT-related configuration
string inputPath = null;  // the deck is generated from scratch, so no input PPT is needed
string savePath = @"E:\textbook\Proportion.ppt";  // result path
string key = "**************************";  // SpireToken key
string instruction =
    "Read the attached PDF textbook and generate a lecture deck as follows:" +
    "1. Follow the textbook's original chapter order and omit nothing;" +
    "2. Make each page substantial: list the chapter's core concepts and formulas, together with the textbook's typical worked examples;" +
    "3. Worked examples must show the full derivation steps, not just the conclusion;" +
    "4. Keep the diagrams, tables and data from the textbook and use them to support the explanation so that students can follow;" +
    "5. Write speaker notes for each page covering the key points, common mistakes and pacing;" +
    "6. Apply one consistent layout to every page, use a light colour theme, add appropriate animations and images, and keep body text at 24 pt or larger;" +
    "Save the final result as a PPT file";

// Call the PPT document processing function
AIResult result = ExecuteDemoPpt(instruction, inputPath, savePath, key, attachmentPaths);

// Execute the PPT AI processing
static AIResult ExecuteDemoPpt(string instruction, string inputPath, string savePath, string key, string[] attachmentPaths)
{
    // Create the AIOptions configuration object
    AIOptions options = new AIOptions();
    options.SpireToken = key;  // set the SpireToken key

    // Process the PPT document with a Presentation object
    using (Presentation ppt = new Presentation())
    {
        // Load the PPT document from file (not needed when generating a deck from scratch)
        if (!string.IsNullOrEmpty(inputPath) && File.Exists(inputPath))
        {
            ppt.LoadFromFile(inputPath);
        }
        // Create the AI document processor
        AIDocumentProcessor processor = ppt.AI(options);

        // Execute the AI instruction
        return processor.ExecuteInstruction(ppt, instruction, savePath, attachmentPaths);
    }
}

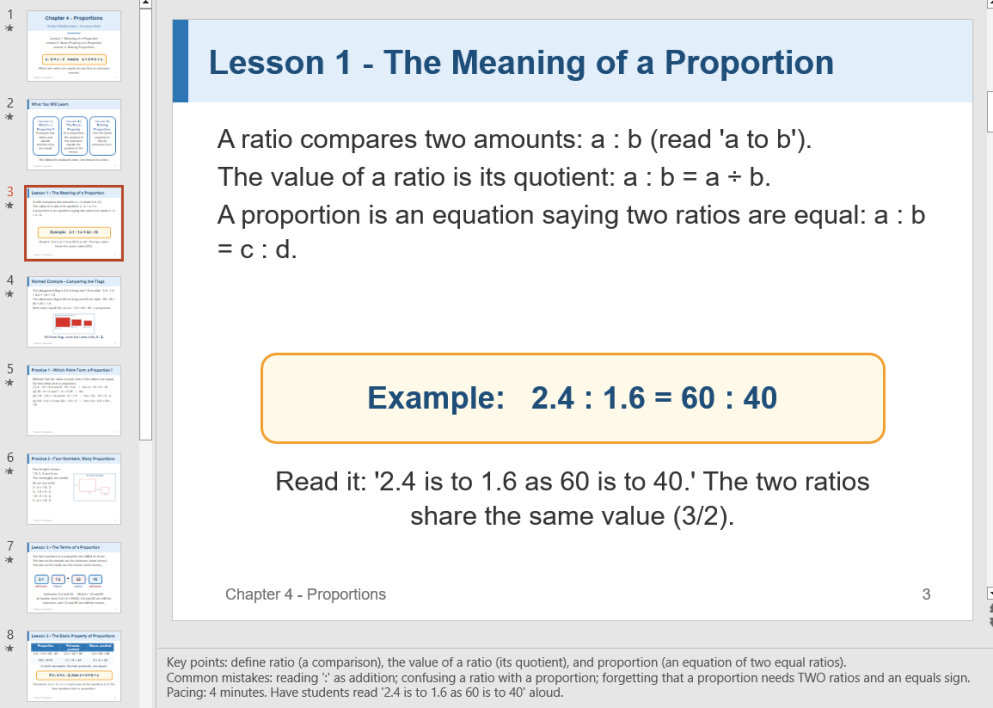

A lecture deck generated from the textbook

Case 2: Generate an exercise deck from a textbook

The exercise set is after-class practice: students work through it on their own, and the teacher walks through it question by question in the next lesson. On slides the exercises need one question per page, with the answer built as an animation that only appears when the teacher reaches that question, so students judge for themselves first and then check their reasoning against the walkthrough.

Moving a set of exercises onto slides, however, is a fair amount of work: the exercises run as a continuous sequence of numbered items packed several to a page, so each one has to be picked out and re-laid-out one question per page; the tables and diagrams inside the questions must be carried over too, or students cannot read the question; and the answers needed for the walkthrough have to be worked out one by one and built as animations. This case treats the exercise deck as a standalone deliverable: pass the PDF of the after-class exercises in as an attachment, and the AI extracts and lays out each question, with the question always on the page and the answer revealed as an animation when the teacher triggers it:

using Spire.Agent.Office.AI;
using Spire.Agent.Office.Extensions;
using Spire.Presentation;

// the textbook's exercise section passed in as an attachment
string[] attachmentPaths = new string[]
{
    @"E:\textbook\ProportionExercises.pdf"
};

// PPT-related configuration
string inputPath = null;  // the deck is generated from scratch, so no input PPT is needed
string savePath = @"E:\textbook\ProportionExercises.ppt";  // result path
string key = "**************************";  // SpireToken key
string instruction =
    "Read the attached PDF textbook exercises and generate an exercise deck as follows:" +
    "1. Follow the textbook's original question order, one question per page, omitting and merging nothing;" +
    "2. Keep the full question text, options and diagrams so that students can answer directly;" +
    "3. Show the answers as animations;" +
    "4. Apply one consistent layout to every page, use a light colour theme, add appropriate animations and images, and keep body text at 24 pt or larger;" +
    "Save the final result as a PPT file";

// Call the PPT document processing function
AIResult result = ExecuteDemoPpt(instruction, inputPath, savePath, key, attachmentPaths);

// Execute the PPT AI processing
static AIResult ExecuteDemoPpt(string instruction, string inputPath, string savePath, string key, string[] attachmentPaths)
{
    // Create the AIOptions configuration object
    AIOptions options = new AIOptions();
    options.SpireToken = key;  // set the SpireToken key

    // Process the PPT document with a Presentation object
    using (Presentation ppt = new Presentation())
    {
        // Load the PPT document from file (not needed when generating a deck from scratch)
        if (!string.IsNullOrEmpty(inputPath) && File.Exists(inputPath))
        {
            ppt.LoadFromFile(inputPath);
        }
        // Create the AI document processor
        AIDocumentProcessor processor = ppt.AI(options);

        // Execute the AI instruction
        return processor.ExecuteInstruction(ppt, instruction, savePath, attachmentPaths);
    }
}

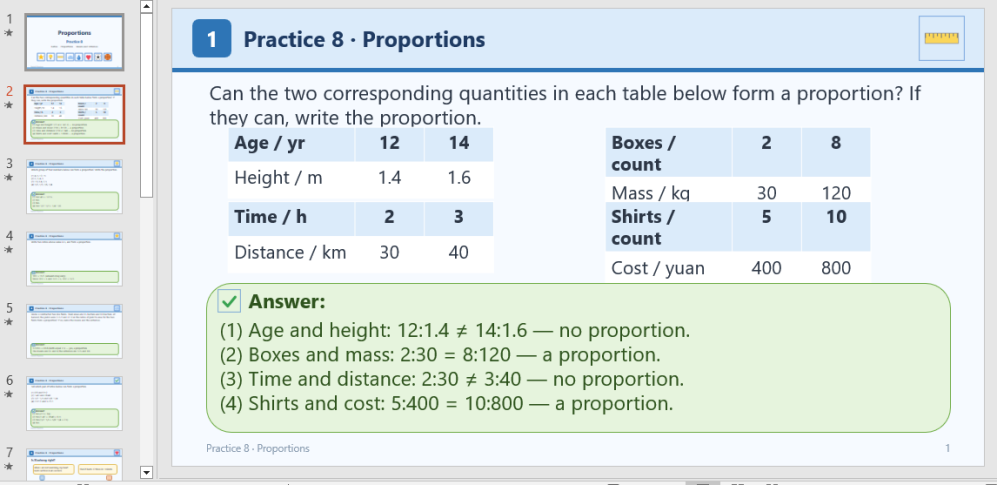

An exercise deck generated from the textbook

FAQ

The body text is copied straight from the textbook and is too small to project

Cause: The instruction does not say what each page should hold, so the AI carries whole paragraphs onto the page and shrinks the font to fit them in.

Solution: Ask explicitly for each page to list the core concepts and formulas with the typical worked examples, and to keep the textbook's diagrams and tables, rather than copying whole paragraphs across; also set a minimum font size (for example, "keep body text at 24 pt or larger"). Constrain only the font size and the enlarged text overflows the page; constrain only the form of the content with no lower bound and the layout may still be squeezed.

A long textbook takes a very long time, or times out

Cause: Deck generation runs page by page, and the AI repeatedly reads and writes the document, sending the existing content back to the model each time. The more pages there are and the denser the text on each, the faster token use and elapsed time grow.

Solution: Set TimeoutMs (in milliseconds) when creating AIOptions. A full textbook of several dozen pages can be given 10 minutes (600000).

AIOptions options = new AIOptions();
options.TimeoutMs = 600000;  // allow 10 minutes for a long textbook
options.SpireToken = key;

Getting a SpireToken Key

• Contact sales@e-iceblue.com or visit https://www.e-iceblue.com/TemLicense.html to obtain a trial/commercial API key

Configure it in your code:

AIOptions options = new AIOptions();
options.SpireToken = key;

When you build a presentation, the part that really costs time is rarely the layout — it is deciding what to say. A slide only has room for the essentials: a few short lines, a set of numbers, one chart. The words that actually need to be spoken live in the author's head. The night before the talk, the author reads the whole deck again, slide by slide, trying to remember what each page was meant to say, and then writes it up.

It gets worse when a team is involved. For a product launch, one person writes the content, another builds the slides, and a third delivers the talk. Whoever steps on stage inherits a deck of bullet points with no idea which numbers matter most — so they improvise. Speaker notes exist precisely for this: they never appear on the projector, only in Presenter View, as the author's message to the speaker. In practice, almost nobody has the patience to fill them in page by page.

The PowerPoint AI capability in Spire.Agent.Office lets you describe in plain language what the notes should say and what tone the script should take. The AI agent reads the title and bullet points of every slide and then handles two jobs: writing speaker notes for each slide, and expanding the whole deck into a Word script that can be read aloud directly.

Compared with the Traditional SDK API

This article shows how to use Spire.Agent.Office to generate speaker notes and a script for a PowerPoint deck. Two cases cover the two common patterns — adding notes to an existing deck and turning a report into a Word script:

• Case 1: Generate per-slide speaker notes for a deck
• Case 2: Turn a business review into a ready-to-read Word script

For product installation and SpireToken configuration, please refer to Integrating Spire.Agent.Office in a .NET Project. The examples below assume Spire.Agent.Office is installed and SpireToken is configured.

Case 1: Generate per-slide speaker notes for a deck

The most common situation is a deck that is already final: layout and content stay exactly as they are, and the only thing missing is the prompt for whoever has to speak. A projected slide is built to be read at a glance, so it carries a title and a few bullet points — where the emphasis falls, what is behind each number, and how to move from one page to the next all stay in the author's head. Speaker notes are what carry that across. They are the author's handover to the presenter: what this page is really getting at, what to stress, and how to lead naturally into the next one. This product launch deck has 8 slides, each with a title and a few bullet points, and an empty notes pane from start to finish. The presenter needs one short paragraph per slide — not an essay, but enough to present the deck rather than read it out. Writing those notes by hand is expensive because every slide needs its own thought. Read the page, rebuild the sentence, and calibrate length — too short and it is no help, too long and it turns into reading from a script. Eight slides is tolerable; a fifty-page annual review rarely gets the treatment it deserves.

The example below uses the Spire.Agent.Office agent to read every slide and write speaker notes into the notes pane, ready to be read aloud:

using Spire.Agent.Office.AI;
using Spire.Agent.Office.Extensions;
using Spire.Presentation;

// PowerPoint processing configuration
string inputPath = @"E:\product-launch.pptx";  // Deck to add speaker notes to
string savePath = @"E:\product_result.pptx";  // Result document path

string key = "**************************";  // SpireToken key
string instruction = "Generate speaker notes for each slide of the input PPT file and write them into the notes pane of that slide: " +
"1. Read each slide's title and bullet points and understand what the page is meant to convey; " +
"2. Write one paragraph of speaker notes per slide, in the presenter's voice, ready to be read aloud; " +
"3. Each note should make clear what this page emphasises and lead naturally into the next slide; keep the notes varied in depth — explain the important content in detail and keep transition slides brief; " +
"4. Keep the original slide layout, fonts, colours and page order completely unchanged, and do not add or remove any slides; " +
"Finally, save the output as a PowerPoint file";

// Call the PowerPoint processing function
AIResult result = ExecuteDemoPpt(instruction, inputPath, savePath, key);

// Run the PowerPoint AI processing
static AIResult ExecuteDemoPpt(string instruction, string inputPath, string savePath, string key)
{
    // Create the AIOptions configuration object
    AIOptions options = new AIOptions();
    options.SpireToken = key;  // Set the SpireToken key

    // Process the PowerPoint document with a Presentation object
    using (Presentation ppt = new Presentation())
    {
        // Load the PowerPoint document from file
        if (!string.IsNullOrEmpty(inputPath) && File.Exists(inputPath))
        {
            ppt.LoadFromFile(inputPath);
        }
        // Create the AI document processor
        AIDocumentProcessor processor = ppt.AI(options);

        // Execute the AI instruction
        return processor.ExecuteInstruction(ppt, instruction, savePath);
    }
}

The original deck with an empty notes pane The deck after speaker notes were written slide by slide

The generated deck looks identical to the original on the projector; the notes appear only in Presenter View. The speaker opens Presenter View and sees the prompt for each slide below it, ready to deliver a complete product launch in order.

Case 2: Turn a business review into a ready-to-read Word script

The notes pane is good for prompting, but not for reading aloud. Notes are short fragments in a small font at the edge of the screen; looking down at them on stage hurts delivery and invites missed lines. When the occasion is more formal — reporting quarterly results to management, for instance, where every figure has to be explained — the speaker needs a complete, spoken-word script. The medium for that script deserves a word of its own. A presentation is made to be looked at; a script is made to be read. A script needs control over font size, line spacing and sectioning, and it is usually printed and carried into the room. Packing several hundred words of body text onto each slide reads badly — and projecting it hands the audience every line. So this case takes a PPT as input and produces a Word script document as output.

Handling that format change is exactly what Spire.Agent.Office does: the deck is still loaded with Presentation, the AI reads each slide, and it writes the script as a Word file following the instruction. So this case has the AI read the figures page by page and then write the script as sections in the original order: each slide of the original becomes one section of the script document, keeping the original title, with the body holding the full script text.

The example below uses the Spire.Agent.Office agent to interpret the figures page by page and write the script, producing a Word document:

using Spire.Agent.Office.AI;
using Spire.Agent.Office.Extensions;
using Spire.Presentation;

// PowerPoint processing configuration
string inputPath = @"E:\quarterly-review.pptx";  // Input presentation path
string savePath = null;  // Result document path (null here, the output folder below is used instead)
string OutDir = @"E:\output-script";  // Output directory
string key = "**************************";  // SpireToken key
string instruction =
    "Read the input PPT file and write a complete presentation script for the speaker, outputting it as a Word script document: " +
    "1. Read the figures and bullet points on each slide and understand the core conclusion of that page; " +
    "2. Write a complete, conversational script per slide that can be read aloud directly; keep it varied in depth, quote the specific figures on that page and explain what they mean for the business; " +
    "3. Lay the script out as sections in the original slide order, each headed 'Slide N + the original title', with the full script for that page as the body; " +
    "4. Format the body for reading aloud: a clear typeface, no smaller than 14 pt, 1.5 line spacing, comfortable paragraph spacing;";

// Call the PowerPoint processing function
AIResult result = ExecuteDemoPpt(instruction, inputPath, savePath, key, OutDir);

// Run the PowerPoint AI processing
static AIResult ExecuteDemoPpt(string instruction, string inputPath, string savePath, string key, string output)
{
    // Create the AIOptions configuration object
    AIOptions options = new AIOptions();
    options.WorkDir = output;  // Set the working directory to the output directory
    options.SpireToken = key;  // Set the SpireToken key

    // Process the PowerPoint document with a Presentation object
    using (Presentation ppt = new Presentation())
    {
        // Load the PowerPoint document from file
        if (!string.IsNullOrEmpty(inputPath) && File.Exists(inputPath))
        {
            ppt.LoadFromFile(inputPath);
        }
        // Create the AI document processor
        AIDocumentProcessor processor = ppt.AI(options);

        // Execute the AI instruction
        return processor.ExecuteInstruction(ppt, instruction, savePath);
    }
}

The generated Word script document

FAQ

Can I use my own model or a private deployment?

Note: By default the AI requests go to Spire's model service. AIOptions also exposes Model, BaseUrl and ApiKey for the model name, the service address and the access key — set these three to route the requests to your own or a third-party inference service.

AIOptions options = new AIOptions();
options.BaseUrl = "baseUrl";
options.Model = "modelName";
options.SpireToken = "*************";
options.ApiKey = "*************";

A long deck is slow to process — and may time out

Cause: Notes and scripts are generated page by page, so the AI reads and writes the document repeatedly and sends the existing content back to the model each time. The more slides there are, and the denser the text on each, the faster token consumption grows and the longer the whole run takes — the default timeout is often not enough.

Solution: Set TimeoutMs explicitly on the AIOptions instance (the unit is milliseconds) so a long deck has enough time. For a 50-slide PPT file, TimeoutMs can be set to 10 minutes (600000).

Getting a SpireToken Key

• Contact sales@e-iceblue.com or visit https://www.e-iceblue.com/TemLicense.html for a trial or commercial API key

Configure it in code:

AIOptions options = new AIOptions();
options.SpireToken = key;

In corporate training, online courses and academic sharing, turning a course document into an "illustrated, voice-narrated" explainer video normally requires a whole toolchain of presentation, image processing, audio synthesis and video encoding. With the AI capability of Spire.Agent.Office, you only need to upload course documents in Word, PDF, Excel, Markdown or other formats and describe the goal in plain language to get a complete narrated video.

Compared with the traditional SDK API

From course document to narrated video:

• Step 1: From course document to a Presentation
• Step 2: From the Presentation to a video

For product installation and SpireToken configuration, please refer to Integrating Spire.Agent.Office in a .NET Project. The examples below assume Spire.Agent.Office is installed and SpireToken is configured.

Step 1: From a course document to a Presentation

Use Spire.Agent.Office to distill the core points and generate a well-designed Presentation automatically.

using Spire.Agent.Office.AI;
using Spire.Agent.Office.Extensions;
using Spire.Presentation;

// Load course documents in Word, PDF, Excel and Markdown (4 formats)
List<string> inputPaths = new List<string>
{
    @"AI-application-course.docx",
    @"research-paper.pdf",
    @"financial-analysis.xlsx",
    @"health-policy.md"
};

string outputDirectory = @"E:\output\";
string key = "**************************";
// Distill the key points of the course document and generate a teaching Presentation.
string instruction =
    "Treat the attached tutorial documents as the processing target : distill the core points of the AI-application tutorial, covering the basics, typical application areas, implementation steps, real cases, and outlook. Theme: use a calm professional gray-blue as the theme color (clean, minimalist, modern AI-tech feel). 1. ensure high-quality layout and typography 2. include appropriate illustrative charts/figures 3. keep a clean, minimalist style 4. generate 12 slides; ";

// Generate a Presentation from each of the Word, PDF, Excel and Markdown course documents in turn
foreach (string inputPath in inputPaths)
{
    if (!System.IO.File.Exists(inputPath)) continue;

    string savePath = System.IO.Path.Combine(outputDirectory,
        $"{System.IO.Path.GetFileNameWithoutExtension(inputPath)}.pptx");

    GeneratePPT(inputPath, instruction, savePath, key);
}

// AI-powered PPT generation
static PPTGenerationResult GeneratePPT(string input, string instruction, string savePath, string key)
{
    //AIOptions options
    AIOptions options = new AIOptions();
    //Set the SpireToken
    options.SpireToken = key;
    //Set the timeout
    options.TimeoutMs = 1000000;
    //If the document content is long, you can customize the token circuit breaker; the default fuse is 3,000,000
    options.TokenCircuitBreakerLimit = 5000000;
    using (Presentation ppt = new Presentation())
    {
        AIDocumentProcessor processor = ppt.AI(options);
        return processor.GeneratePresentation(input, instruction, savePath);
    }
}

Step 2: From a Presentation to a video

Based on the Presentation generated in step 1, a single instruction that asks for "voice narration" automatically produces an MP4 explainer video with spoken commentary.

using Spire.Agent.Office.AI;
using Spire.Agent.Office.Extensions;
using Spire.Presentation;

// Define the paths of the 4 PPT source files generated in the previous step
List<string> inputPaths = new List<string>
{
    @"AI-application-course.pptx",
    @"research-paper.pptx",
    @"financial-analysis.pptx",
    @"health-policy.pptx"
};

string outputDirectory = @"E:\output\";
string key = "**************************";
string instruction = "Create an MP4 explainer video of this presentation with synchronized voice narration in English.";

// Loop over each PPT to generate a video
foreach (string inputPath in inputPaths)
{
    if (!File.Exists(inputPath)) continue;

    string savePath = Path.Combine(outputDirectory,
        $"{Path.GetFileNameWithoutExtension(inputPath)}.mp4");

    ExecuteDemoPPT(instruction, inputPath, savePath, key, null);
}

// Execute the PPT document AI processing (generate a video with voice narration)
static AIResult ExecuteDemoPPT(string instruction, string inputPath, string savePath, string key, string[] attachmentPaths)
{
    //AIOptions options
    AIOptions options = new AIOptions();
    //Set the SpireToken
    options.SpireToken = key;
    //Set the timeout
    options.TimeoutMs = 1000000;
    //Set the token circuit breaker
    options.TokenCircuitBreakerLimit = 5000000;
    using (Presentation ppt = new Presentation())
    {
        if (!string.IsNullOrEmpty(inputPath) && File.Exists(inputPath))
        {
            ppt.LoadFromFile(inputPath);
        }
        AIDocumentProcessor processor = ppt.AI(options);
        return processor.ExecuteInstruction(ppt, instruction, savePath, attachmentPaths);
    }
}

Word document ----> Presentation ----> narrated .mp4 video

Pdf document ----> Presentation ----> narrated .mp4 video

Excel document ----> Presentation ----> narrated .mp4 video

Markdown document ----> Presentation ----> narrated .mp4 video

FAQ

The generated PPT's page count does not match the course content

Cause: when the course document is large, the AI's choices when distilling and paginating can differ from expectations.

Solution: state the page count explicitly in the instruction, for example "generate 9 slides, one teaching segment per slide".

The result failed to generate

Cause: the source document contains a lot of data, so the analysis consumes a large number of tokens and exceeds the default token fuse limit.

Solution: configure TokenCircuitBreakerLimit yourself, as shown below:

AIOptions options = new AIOptions();
options.TokenCircuitBreakerLimit = 5000000;

Can multi-format course documents (Word/PDF/Excel/Markdown) all be converted?

Cause: each format is parsed differently, so users are not sure what works.

Solution: Spire.Agent.Office detects the format of the attached document and reads its content automatically; simply pass in the file of the corresponding format and state its origin in the instruction.

Get your SpireToken Key

• Contact sales@e-iceblue.com or visit https://www.e-iceblue.com/TemLicense.html to obtain a trial/commercial API key

Configure it in code:

AIOptions options = new AIOptions();
options.SpireToken = key;

Before a presentation, the aspect ratio of a PPT often needs to be unified — some meeting screens are 4:3 standard while some projectors are 16:9 widescreen. This requires bidirectional layout conversion, and during the conversion the font sizes and image positions must be adjusted automatically so the content displays correctly with no text overflow or misplaced images. This article shows how to use the Spire.Agent.Office PowerPoint AI capability to batch-convert PowerPoint presentations between the 4:3 standard ratio and the 16:9 widescreen ratio.

• Convert 4:3 Standard to 16:9 Widescreen
• Convert 16:9 Widescreen to 4:3 Standard

Comparison with the Traditional SDK API

For product installation and SpireToken configuration, please refer to Integrating Spire.Agent.Office in a .NET Project. The examples below assume Spire.Agent.Office is already installed and SpireToken is configured.

Convert 4:3 Standard to 16:9 Widescreen

The content structure, theme, and color scheme of every slide remain unchanged; font sizes and image positions are automatically adapted to the widescreen canvas, and multi-page PPTs are converted in one pass.

using Spire.Agent.Office.AI;
using Spire.Agent.Office.Extensions;
using Spire.Presentation;

// PowerPoint AI processing configuration
string inputPath = @"ratio_43.pptx";
string savePath = @"output.pptx";
// SpireToken Key
string key = "**************************";
string instruction = "Read the input PowerPoint presentation and batch-convert it from 4:3 standard aspect ratio to 16:9 widescreen";
AIResult result = ExecuteDemoPpt(instruction, inputPath, savePath, key);

// Execute PowerPoint document AI processing
static AIResult ExecuteDemoPpt(string instruction, string inputPath, string savePath, string key)
{
    // Create an AIOptions configuration object
    AIOptions options = new AIOptions();
    options.SpireToken = key;

    // Use the Presentation object to process the PowerPoint document
    using (Presentation ppt = new Presentation())
    {
        // Load the PPT from the file
        if (!string.IsNullOrEmpty(inputPath) && File.Exists(inputPath))
        {
            ppt.LoadFromFile(inputPath);
        }
        // Create an AI document processor
        AIDocumentProcessor processor = ppt.AI(options);

        // Execute the AI instruction
        return processor.ExecuteInstruction(ppt, instruction, savePath);
    }
}

Original 4:3 standard PPT Converted 16:9 widescreen PPT

Convert 16:9 Widescreen to 4:3 Standard

using Spire.Agent.Office.AI;
using Spire.Agent.Office.Extensions;
using Spire.Presentation;

// PowerPoint AI processing configuration
string inputPath = @"ratio_169.pptx";
string savePath = @"output.pptx";
// SpireToken Key
string key = "**************************";
string instruction ="Read the input PowerPoint presentation and batch-convert it from 16:9 widescreen aspect ratio to 4:3 standard";

// Call the PowerPoint document processing function
AIResult result = ExecuteDemoPpt(instruction, inputPath, savePath, key);

// Execute PowerPoint document AI processing (the same helper function as above)
static AIResult ExecuteDemoPpt(string instruction, string inputPath, string savePath, string key)
{
    AIOptions options = new AIOptions();
    options.SpireToken = key;

    using (Presentation ppt = new Presentation())
    {
        if (!string.IsNullOrEmpty(inputPath) && File.Exists(inputPath))
        {
            ppt.LoadFromFile(inputPath);
        }
        AIDocumentProcessor processor = ppt.AI(options);
        return processor.ExecuteInstruction(ppt, instruction, savePath);
    }
}

Original 16:9 widescreen PPT Converted 4:3 standard PPT

FAQ

Result document pages are missing

Cause: If the original document has many pages, the AI analysis can take a relatively long time. The default timeout setting of AIOptions.TimeoutMs is 5 minutes; if it is exceeded, the AI analysis is interrupted.

Solution: Set a sufficiently large AIOptions.TimeoutMs, for example:

 AIOptions options = new AIOptions();
    options.TimeoutMs = 1000000;

Get a SpireToken Key

• Contact sales@e-iceblue.com or visit https://www.e-iceblue.com/TemLicense.html to get a trial/commercial API key

Configure it in code:

AIOptions options = new AIOptions();
options.SpireToken = key;
